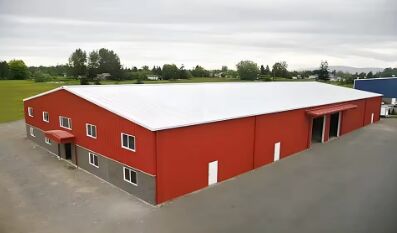

High Quality Pre Engineered Steel Buildings Structure Aircraft Hangar Material Company Hot Sale Modern Prefabricated Warehouse with Welded Frame Custom Made Solutions 3D Model Design CE Certification
| 원래 장소 | 중국 허베이 |
|---|---|
| 브랜드 이름 | BAODU |
| 인증 | ISO9001,CE |
| 모델 번호 | 철강 창고 |
| 문서 | 제품 설명서 PDF |
| 최소 주문 수량 | 1000제곱미터 |
| 가격 | $45-65square meter |
| 포장 세부 사항 | 일반적으로 철구조물은 물품이 파손되지 않도록 철골패킹을 사용하고 있습니다. 샌드위치 패널 및 컬러강판에는 플라스틱 패킹을 사용하고 있습니다. 고객이 특별한 포장을 필요로 하는 경우 |
| 배달 시간 | 30일 |
| 지불 조건 | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
| 공급 능력 | 달 당 100000 평방 미터/평방 미터 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
whatsapp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품명 | 전 설계된 강철 건물 구조 격납고 재료 회사 뜨거운 판매 현대 조립식 창고 3D 모델 디자인 CE 인증 | 가공 서비스 | 벤딩, 용접, 디코일링, 커팅, 펀칭 |
|---|---|---|---|
| 설계 | SAP2000/AutoCAD /PKPM /3D3S/TEKLA | 프로젝트 솔루션 역량 | 3D 모델 디자인, 프로젝트를 위한 전체 해결책 |
| 크기 | 고객 요구 사항에 따르면 | 재료 | Q235B/Q345B 저탄소강 |
| 포장 | 표준 포장 | 지붕과 벽 | 골판지/EPS/PU/암면/유리솜 |
| 운송 가능성 | 트럭이나 선박으로 쉽게 운송 가능 | 창문 | 알루미늄 합금 슬라이딩 윈도우 |
| 판매 후 서비스 | 온라인 기술 지원, 무료 예비 부품 | ||
| 강조하다 | prefab steel warehouse with welded frame,custom aircraft hangar steel structure,CE certified prefabricated warehouse design |
||
제품 설명
High Quality Pre-Engineered Steel Buildings
Custom engineered steel structures including aircraft hangars, warehouses, and industrial facilities with welded frames, 3D model design, and CE certification.
Material Specifications
| Project | Steel Structure Building |
|---|---|
| Size | According to Customer Need |
| Main Steel Structure Frame | |
| Column | Q235B, Q355B Welded H Section Steel |
| Beam | Q235B, Q355B Welded H Section Steel |
| Secondary Steel Structure Frame | |
| Purlin | Q235B C and Z Type Steel |
| Knee Brace | Q235B C and Z Type Steel |
| Tie Tube | Q235B Circular Steel Pipe |
| Brace | Q235B Round Bar |
| Vertical and Horizontal Support | Q235B Angle Steel, Round Bar or Steel Pipe |
| Roof and Wall System | |
| Roof Cladding | Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool) |
| Wall Cladding | Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool) |
| Door | Sandwich Panel Sliding Door/Rolling Metal Door |
| Window | Aluminium Alloy Window/PVC Panel Window |
Technical Parameters
Please provide the following information for quotation:
- Project Progress: Is land purchased? Is it licensed by the government?
- Usage: warehouse, workshop, showroom, etc.
- Location: Country where building will be constructed
- Local Climate: Wind speed, snow load (maximum wind speed)
- Design: Provide design drawing or request our design services
- Dimension: Length × width × height
- Crane Beam: Requirement for internal crane beam
- Roof and Wall: Panel material selection
- Windows and Doors: Material, quantity, and type specifications
Key Components
- Cost-saving and transportation-convenient designs
- Main beam and column made from qualified steel
- Resists heavy wind (140km/h) and 8-grade earthquakes
- Easy assembly and disassembly without damage
- Wide applications in various construction scenarios
- Environmentally friendly and recyclable materials
Production Process
Steel structure buildings feature main load-bearing members made of steel, including columns, beams, foundations, and roof trusses. Roof and wall systems utilize various materials such as sandwich panels, steel sheets, wire mesh, and foam cement boards for different applications.
Connection Method: Columns connect with foundations via pre-embedded anchor bolts. Beams and columns connect using high-intensity bolts.
Construction Advantages:
- Custom design for specific purposes and environmental conditions
- Long lifespan exceeding 50 years
- Quick and easy installation with economic efficiency
- Relocatable and recyclable structures
- Strong seismic and wind resistance capabilities
Project Cases
Quality Control
We implement whole-process quality management with strict supervision from raw materials to installation. Our professional quality inspection team uses advanced equipment including German GS1000 vacuum spectrometer and high-frequency infrared carbon sulfur analyzer.
Certifications
Company Profile
Baodu International Advanced Construction Material Co., Ltd was established in January 2010 with offices in Beijing and factory in Hebei, China. We specialize in industrial noise treatment, steel structures, sandwich panels and prefab houses.
Annual production capacity includes 6 million square meters of acoustic sandwich panels, 100,000 tons of steel structures and 1 million square meters of floor decking sheet. Our products serve over 30 countries worldwide.
Our professional design team includes 5 senior engineers, 20 engineers, and 35 technicians with over 10 years' experience. We hold multiple energy saving patents, construction qualifications, CE certification and Russian GOST certification.
Notable projects include the military parade village for China's 60th anniversary and Beijing Daxing International Airport. We've also undertaken international projects in Pakistan and Dubai under China's "One Belt, One Road" initiative.
Packaging and Shipping
Packaging Details:
- Steel structure components with proper protection
- Sandwich panels covered with plastic film
- Bolts and accessories in wooden boxes
- Standard ocean transport packaging
- Professional loading with cranes and forklifts
Frequently Asked Questions
1. How is your quality control?
Our products have obtained certifications from ISO9001, CE.
2. Can you provide design services?
Yes, we have an engineering team that can design according to your requirements. We provide construction drawings, structural drawings, processing details, and installation drawings for confirmation at different project stages.
3. Do you provide samples?
Yes, we can provide samples. Customers are responsible for freight costs.
4. What is the delivery time?
Delivery time depends on building size and quantity, typically 15-30 days after payment receipt. Large orders allow for partial shipments.
5. Do you offer installation services?
We provide detailed construction drawings and installation manuals. If needed, we can send engineers to assist with installation.
6. How can I get your quotation?
Contact us online or via email. Provide drawings or building dimensions (length, width, eave height) and local weather conditions for accurate quotation and drawings.
7. How is your payment method?
30% deposit before production, remaining 70% upon bill of lading copy or letter of credit.
